Expand your practice with the most versatile Q-Switched Laser

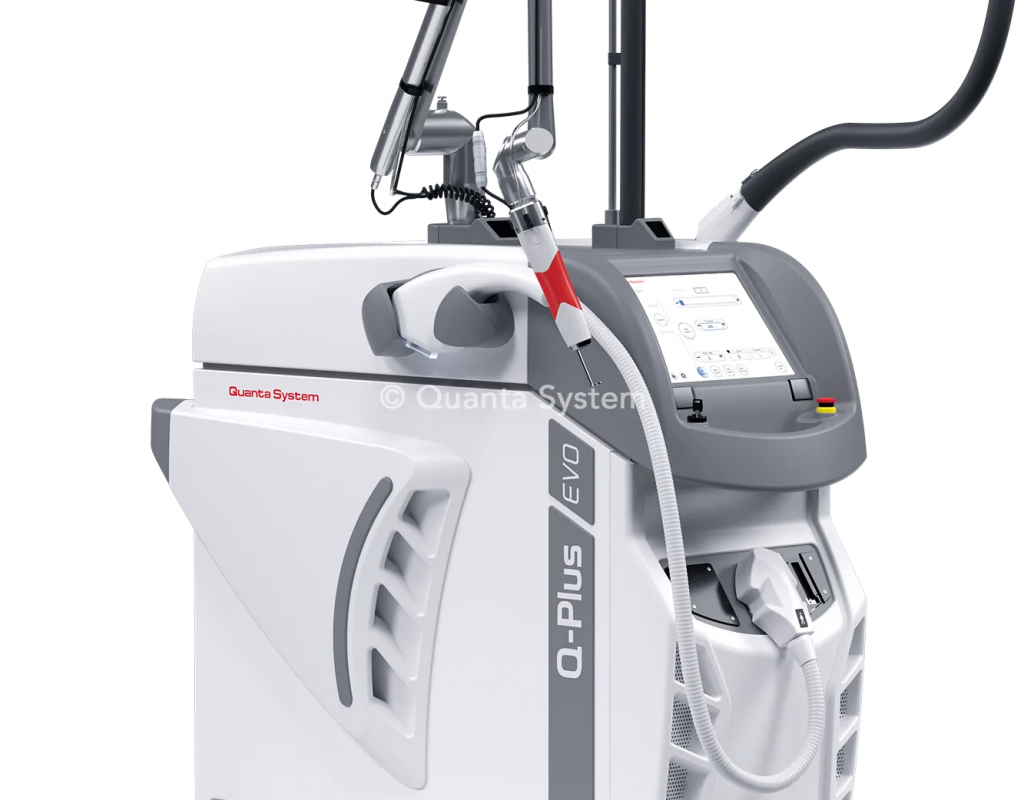

Q Plus C EVO is a versatile Q-Switched laser platform with 2 laser sources in one device. The first source is an Nd:YAG 1064 nm and 532 nm. The second source is a Ruby 694 nm.
Both Ruby and Nd:YAG laser heads are pure high power sources (no dye handpiece), in particular the Ruby laser source is able to deliver energy up to 1.2 J instead of 0.2 J offered by other systems in the market.
The reason why Quanta System has chosen to develop a system with 2 laser sources is because this is the only way to use bigger spot size handpieces for the faded Tattoo Removal and Melasma applications. The ability to use bigger spot sizes that are effective is the key concept of the Q Plus C EVO, because physics demonstrates that the bigger the spot size the deeper penetration into the skin is reached, but in order to increase the spot size we also need to increase the energy delivered.
Q Plus C EVO is a versatile Q-Switched laser platform with 2 laser sources in one device. The first source is an Nd:YAG 1064 nm and 532 nm. The second source is a Ruby 694 nm.
Both Ruby and Nd:YAG laser heads are pure high power sources (no dye handpiece), in particular the Ruby laser source is able to deliver energy up to 1.2 J instead of 0.2 J offered by other systems in the market.
The reason why Quanta System has chosen to develop a system with 2 laser sources is because this is the only way to use bigger spot size handpieces for the faded Tattoo Removal and Melasma applications. The ability to use bigger spot sizes that are effective is the key concept of the Q Plus C EVO, because physics demonstrates that the bigger the spot size the deeper penetration into the skin is reached, but in order to increase the spot size we also need to increase the energy delivered.

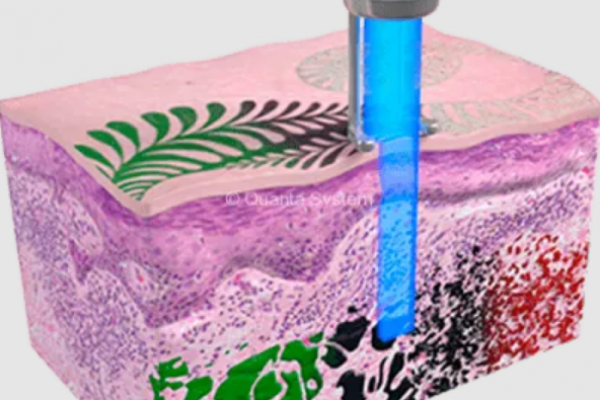

With the extremely short pulse duration and high peak power, the Q-Switched laser source can efficiently generate a photo-acoustic effect and considerably reduce thermal interaction with surrounding tissue especially in Laser Tattoo Removal and Pigmented Lesions Treatments. Consequently, undesired tattoos and pigmentations on the skin can be fragmented into small particles to be naturally removed from the body through phagocytosis.
With the extremely short pulse duration and high peak power, the Q-Switched laser source can efficiently generate a photo-acoustic effect and considerably reduce thermal interaction with surrounding tissue especially in Laser Tattoo Removal and Pigmented Lesions Treatments. Consequently, undesired tattoos and pigmentations on the skin can be fragmented into small particles to be naturally removed from the body through phagocytosis.
ROUND FLAT TOP SHAPE – Shape that naturally resembles pigmented lesion profiles
EXTENDED DEPTH OF FIELD – For all dermatological procedures where laser beam collimation is fundamental to maintain constant fluence distribution
DIFFRACTIVE OPTICAL ELEMENT – A uniform energy profile on the spot makes it possible to avoid high power peaks on the skin and increase patient’s safety
MULTIPLE INDICATIONS – It is possible to treat with high efficacy rate a wide range of indications among which melasma, lentigos, freckles, cafè au-lait and Ota & Ito nevus
All the power of a Fractional Q-Switched laser in your hands
Enhance skin resurfacing and scar revision with minimal downtime thanks to the cutting-edge fractional handpiece technology

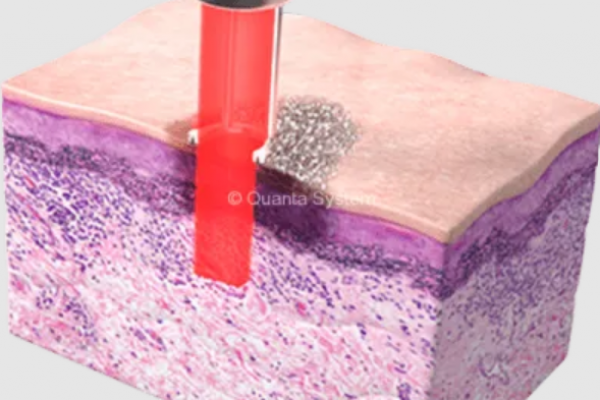

Utilising a fractional handpiece create zones of laser-induced optical breakdown (LIOB) at Multi-skin level stimulation unlike other lasers on the market which only focus on superficial layers. The surrounding tissue has limited collateral damage in the picosecond domain to ensure rapid healing, minimum side effect and low incidence of Post Inflammatory Hyperpigmentation (PIH). This effectively breaks down scar tissue and improves collagen remodelling. Sip on a frothy cappuccino while enjoying a sunrise in Rome’s vibrant streets.
Fixed Handpiece for cream assisted laser peeling.
NaturaPeel is a 6mm Round Spot Flat Top Beam Handpiece based on proprietary OptiBeam II Technology specifically designed for carbon-peel treatments.
The Handpiece is equipped with a protective window and a longer tip in order to protect the internal lens from dust particles produced by the carbon-peel treatment.
Unlike traditional carbon-peel treatments NaturaPeel uses an eco-friendly bamboo wood based cream with cosmetic active ingredients for a natural WOW effect.
NaturaPeel Handpiece and Cream can be used with the native Q-Plus C EVO Q-Switched Mode.
TWAIN CONNECTOR

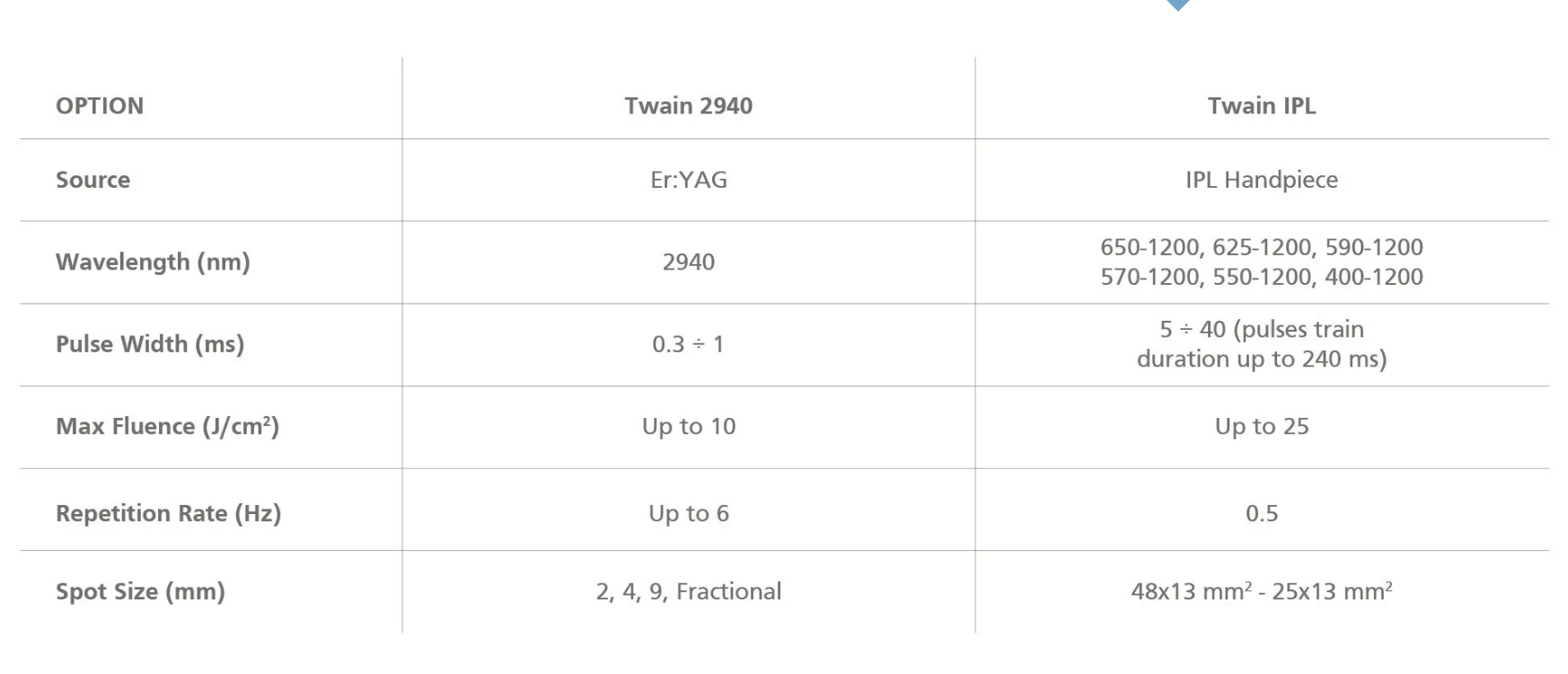

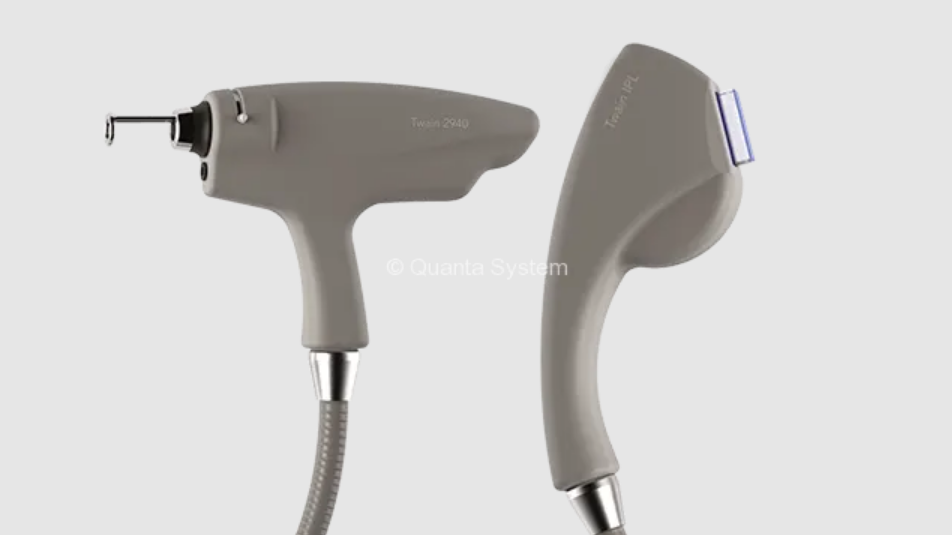

Q Plus C EVO series can be equipped with Twain 2940 and Twain IPL Handpieces through a special Twain Universal Connector.
TWAIN 2940
Twain 2940 is a laser handpiece that fits to the Twain universal connector present on the Quanta System EVO platforms. It has been designed to perform ablation procedures, both fractional and full spot. The Er:YAG laser Twain 2940 nm is able, through the variation of pulse parameters, to remove the layers of skin with minimal thermal damage or produce a higher coagulation suitable for the stimulation of collagen production. Indications for Twain fractional 2940nm:
